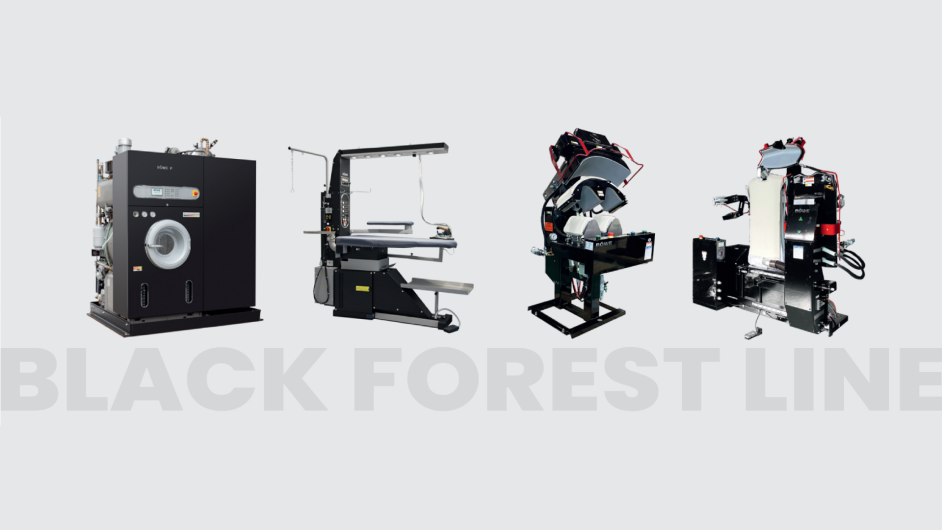

BÖWE Black Forest Line

BÖWE Black Forest Line

BÖWE Textile Cleaning GmbH

Supplier profile All products

Contact supplier Contact persons

Description

BÖWE SHIRT PRESS SP22:

Excellent also for slim and fitted shirts
Combination of finisher with blowing effect in the back area,
the sleeves and press for chest and shoulder area
Shoulder press with extended shape for pressing the back seam
Special padding for better button protection
Sleeve hight adujstment for optimated fixation of all arm types
With heat recovery system
Shoulder/ and front press plate are Teflon coated to prevent shiny spots on black shirts
No hand finisher iron necessary
Energy saving
Cycle time approx. 10 seconds

BÖWE TEXTILE CLEANING MACHINE P/M BLACK FOREST:

Loading capacity: 12-50 kg
Available in PER and multisolvent version
Lower solvent consumption
Stainless steel parts such as pipes, solvent tank, air duct, water separator, distillation, button trap, etc.
Steel parts such as back plate, cooling unit console, button trap, fan housing, etc., are cataphoresis painted. This electro-phoresic method of paint application on metal is the most advanced technology for surface treatments.
Brass conex fiittings
Self-cleaning water separator
Automatic solvent control

BÖWE IRONING BOARD IB14 UP:

Pneumatic height adjustment from 90-107 cm
Large ironing surface (1420x520/290 mm)
5 Built-in top LED spotlights with automatic infrared detection sensor
Auto-start function by lifting the iron
Up-steam-function
Built-in light barrier to start the blowing function by foot
Complete work station with stainless steel spotting arm and steam/air spotting gun
Built-in 8 litres stainless steel steam boiler

BÖWE COLLAR CUFF PRESS CC20:

Large collar shape, also suitable for a button placket
Small footprint of the machine
High reliability
Long lasting finish results
Special padding for better button protection
Oversized pneumatic cylinders and bearings
Teflon-coated press plates

More from us

Our website

More products by BÖWE Textile Cleaning GmbH

BÖWE Overboil protection for distillation

BÖWE Overboil protection for distillation

PROBLEM:

Ever since dry cleaning machines have been in existence, the problem of distillation boil over (also: black-over) has been known in the industry. Due to the addition of low temperature boilers such as water, high humidity, dosing additives and substances removed from the garments during the dry cleaning process, the boiling behaviour of the solvents and the low boiler mixture can change. This results in froth and a black-over of the distillation. This problem is particularly known in the case of alternative solvents, which have been used more and more in the last few years.

SOLUTION:

BÖWE decided to tackle this situation and developed a new photoelectric sensor. During the distillation process, the surface of the liquid in the distillation is monitored. If there is increased bubble formation, the sensor detects this situation and automatically breaks the vacuum for a short time. This leads to an increase in the boiling point and a collapse of the foam head. Black-over and dirt transfer are thus prevented.

The Overboil protection for distillation is available as an option for the BÖWE Multisolvent® dry cleaning machines

ADVANTAGES:

No need for annoying and expensive cleaning of the water separators and clean tanks
Therefore no odor formation
Energy-intensive distillation of contaminated tank contents is no longer necessary which saves a lot of energy, time and cooling water.

BÖWE PremiumLine and iLine Dry cleaning machines

BÖWE PREMIUMLINE AND ILINE DRY CLEANING MACHINES

The BÖWE PremiumLine and iLine dry cleaning machines offer modern and efficient solutions for professional textile care.

BÖWE PREMIUMLINE:

Available models: Perc and Multisolvent® version, available in SlimLine or CrossLine design
Loading capacities: 12 kg, 15 kg, 18 kg, 21 kg, 26 kg and 30 kg
Technology and benefits:
- Dynamic airflow drying system: ensures fast and gentle drying of textiles
- Time and cost savings thanks to self-cleaning solvent tanks and automatic maintenance programmes
- Durable construction: 8-year guarantee on stainless steel pipes, Conex brass fittings, Viton flaps and condenser
- Robust design: distillation, tank, drum, air shaft, condenser, button trap and water separator made of stainless steel
- Sloping distillation and tank bottoms: prevent sludge, dirt and water accumulation, thereby preventing bacteria and odour formation
- Round components reduce weak points such as welds, prevent the formation of lint balls and improve airflow
- Efficient solvent management: low-level sensors automatically adjust the amount of solvent to the load in order to minimise solvent consumption
- Special surface coatings in the button trap basket, on the cooler or the back plate of the drum, make maintenance considerably easier and reduce lint adhesion, keeping cycle times short and energy consumption low
- Maximum flexibility and investment security through conversion from Perc to Multisolvent® using the P2M parts kit
- Multisolvent®: BÖWE Multisolvent® machines can be operated with all alternative solvents on the market. The use of another solvent only requires a free software update, without mechanical modifications
- Wide range of optional components to find the optimal solution for your business and your requirements

BÖWE ILINE:

In the BÖWE iLine series, quality meets affordability. This series uses the same technology proven in the PremiumLine but offers a more economical alternative.

Available models: Perc and Multisolvent® version, available in SlimLine or CrossLine design
Loading capacities: 9 kg, 12 kg, 15 kg, 18 kg

BÖWE IndustryLine dry cleaning machines

BÖWE INDUSTRYLINE

The BÖWE IndustryLine is used under the toughest conditions as for example in continuous three-shift operation.

Available models: Perc and Multisolvent® version
Loading capacities: 50 kg, 70 kg, 100 kg, 100-200 kg
Key features:
- Excellent cleaning results, even with extremely greasy and oily garments
- Great care of garments for significantly longer textile life
- Low operating and personnel cost
- 3 self-cleaning solvent tanks with slopping bottom ends to make sure the solvent is collected from the lowest dip point, allowing no deposits
- Dynamic airflow drying system: ensures fast and gentle drying of textiles
- Robust design: distillation, tank, drum, air shaft, condenser, button trap and water separator made of stainless steel
- Round components reduce weak points such as welds, prevent the formation of lint balls and improve airflow
- Special surface coatings make maintenance considerably easier and reduce lint adhesion
- Multistage distillation with 2 water separators: the fractional distillation prevents water accumulation in the solvent tank. By avoidance of dirt and water in the tank, no culture medium for bacteria is formed
- Low solvent consumption
- Field of application: fur degreasing, work wear, cleaning clothes, rags, gloves, carpets, textile production, aviation industry, tannery, etc.
- Durable construction: 8-year guarantee on stainless steel tubes, Conex brass fittings, Viton flaps and condenser
- Wide range of optional components
